Secondary Containment
Built-in sump space helps collect liquid leaks during storage and handling.
PRODUCT DETAILS
Spill Containment Pallets
Secondary containment pallets for chemical drums, oil drums, hazardous liquids and industrial storage programs. Size, sump capacity, load, color and export packing can be discussed by project.
- Suitable for 1-drum, 2-drum, 4-drum, IBC, low-profile and laboratory spill containment requirements
- HDPE / PE material, removable grating, drain plug and forklift handling structures can be discussed
- For chemical warehouses, workshops, oil storage, laboratories and waste-liquid holding areas
- Sourcing, quotation, sample, inspection, packing and export coordination support available
Final dimensions, sump capacity, load rating, color and packing depend on selected model and supplier confirmation.
Secondary containment for liquid storage safety
Spill containment pallets use a built-in sump to collect leaks from drums, containers and valves, helping reduce spill risk in warehouses, workshops, laboratories and export storage programs.
Advantages of Spill Containment Pallets
Chemical Resistance
HDPE / PE material options can be discussed for industrial liquid use.
Removable Grating
The top deck supports drums and can be removed for cleaning and inspection.
Warehouse Handling
Forklift slots or handling structures can be discussed according to model.
Multiple Types
1 drum, 2 drum, 4 drum, IBC, low-profile and laboratory options can be sourced.
Export Support
Packing, container loading, labels and supplier coordination can be supported.
Types of Spill Containment Pallets
Single Drum Spill Pallets
For one 55 gallon drum, chemical drum or oil drum near workstations and small storage areas.
- Common Sizes
- 720 x 720 x 155 mm / 650 x 650 x 170 mm / 670 x 670 x 100 mm / 680 x 680 x 100 mm
- Custom Size
- Available by project requirement
- Sump Capacity
- Confirmed by selected size and model
- Load Capacity
- Confirmed by selected size and model
Can not find the size you need? Custom drum count, pallet size, load and sump capacity can be discussed. Please submit your requirement.
2 Drum Spill Pallets
For two-drum storage in maintenance areas, workshops and chemical warehouses.
- Typical Size
- 1300 x 690 x 300 mm
- Sump Capacity
- Confirmed by model
- Static Load
- 1200 kg
- Dynamic Load
- 600 kg
Can not find the size you need? Custom drum count, pallet size, load and sump capacity can be discussed. Please submit your requirement.
4 Drum Spill Pallets
For concentrated storage of four oil drums or chemical drums with sump and load requirements.
- Typical Size
- 1300 x 1300 x 300 mm / 1320 x 1320 x 300 mm
- Sump Capacity
- about 220 L
- Weight
- about 36 kg
- Load Capacity
- Static 3000 kg / dynamic 1300 kg
Can not find the size you need? Custom drum count, pallet size, load and sump capacity can be discussed. Please submit your requirement.
IBC Spill Pallets
For IBC totes, larger containers and higher sump-capacity requirements.
- Typical Size
- 1380 x 1380 x 900 mm
- Sump Capacity
- about 1200 L
- Weight
- about 71-72 kg
- Load Capacity
- Static 3600 kg / dynamic 1800 kg
Can not find the size you need? Custom drum count, pallet size, load and sump capacity can be discussed. Please submit your requirement.
Low Profile Spill Decks
For workshops, laboratories and storage areas needing lower loading height.
- Typical Height
- Lower profile than drum spill pallets
- Sump Capacity
- Confirmed by deck module
- Material
- HDPE / PE
- Container Fit
- Small containers, drums and workshop transfer points
Can not find the size you need? Custom drum count, pallet size, load and sump capacity can be discussed. Please submit your requirement.
Laboratory Spill Decks
For reagent bottles, beakers, waste-liquid containers and small liquid containers in laboratory areas.
- Application
- Laboratories, testing rooms, environmental areas and small-container storage
- Container Fit
- Reagent bottles, beakers, small drums and waste-liquid containers
- Sump Capacity
- Confirmed by deck size and module
- Material
- HDPE / PE
Can not find the size you need? Custom drum count, pallet size, load and sump capacity can be discussed. Please submit your requirement.
Basic Product Information
Product TypeSpill containment pallet / secondary containment pallet
MaterialHDPE / PE / other chemical-resistant material options
Container Fit55 gallon drums, chemical drums, oil drums, IBC totes and small liquid containers
StructureRemovable grating, sump, drain plug, forklift slots and non-slip deck options
ColorYellow, black or custom colors depending on supplier capability
Sump CapacityConfirmed by model, drum count and application requirement
Load CapacityStatic load, dynamic load and forklift handling to be confirmed by model
PackagingWrapped, palletized, reinforced export packing or container loading plan can be discussed
MOQAvailable on request. Sample and project sourcing can be discussed.
The sizes above are common reference specifications. If no size fits your project, contact us to discuss custom size, color, load capacity, sump capacity and packing.
Custom & Sourcing Options
Size & Drum Count
Match by 1 drum, 2 drum, 4 drum, IBC or low-profile deck requirement.
Sump Capacity
Confirm according to container volume, use scenario and local storage requirement.
Structure Details
Grating, drain plugs, forklift slots, cover and non-slip deck can be discussed.
Color & Marking
Safety yellow, black, logo, warning marks and labels can be reviewed.
Packing Method
Packing and loading plan can be confirmed for LCL, FCL or project shipment.
Document Support
Specification sheets, inspection photos, loading photos and supplier documents can be coordinated.
Application Scenarios
Chemical Warehouses
For chemical drums, cleaning agents, solvents and hazardous liquid storage.
Oil & Lubricant Storage
For lubricants, fuel, oil drums and maintenance areas.
Factory Workshops
For production lines, equipment maintenance zones and temporary storage areas.
Labs & Environmental Areas
For liquid waste, small containers and secondary containment programs.
Logistics & Export Projects
For liquid goods storage, pre-loading holding and warehouse safety management.
Information helpful for quotation
To prepare a more suitable spill pallet quotation, please share as many of the following details as possible:
- Drum type, drum count or IBC container size
- Target sump capacity, static load, dynamic load and forklift handling requirement
- Use scenario: indoor warehouse, outdoor area, workshop, laboratory or waste storage
- Color, logo, warning label, packaging and labeling requirements
- Target quantity, destination country, destination port or delivery address
- Sample, inspection, loading photo or project document requirements
FAQ
A spill pallet provides a stable deck for drums and uses a built-in sump to collect liquid from leaks, overflow or damaged containers.
Spill decks are usually lower profile for easier loading, while spill pallets usually provide deeper containment space for drum storage.
IBC spill pallets are used with IBC totes and larger containers where higher sump capacity, loading strength and forklift handling need to be confirmed.
For chemical, oil or waste-liquid storage areas, spill kits and absorbents are often useful as supporting emergency response products.
Available Product Directions
Different structures can be matched according to drum count, container type, site conditions and project budget.

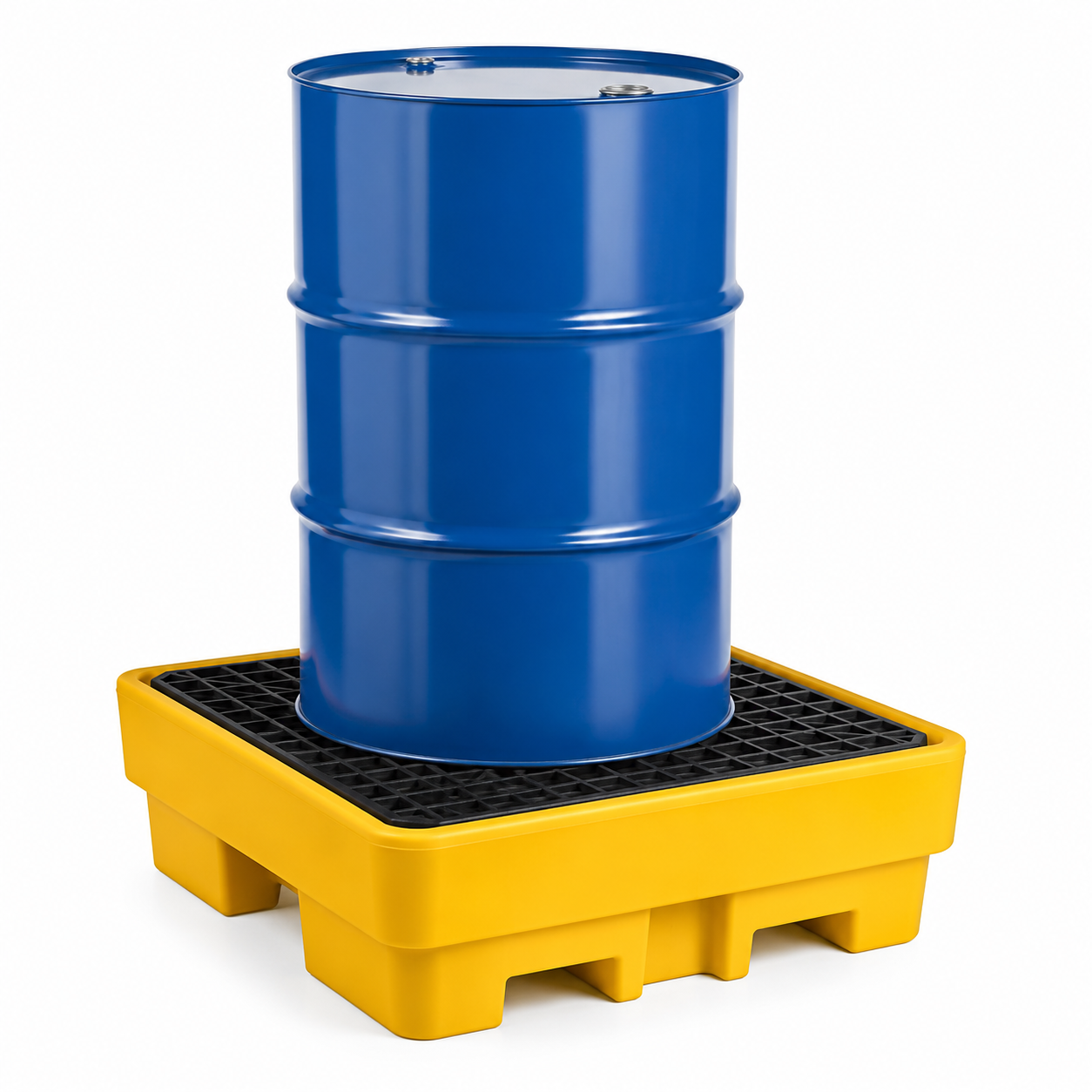

1 drum spill pallet product image

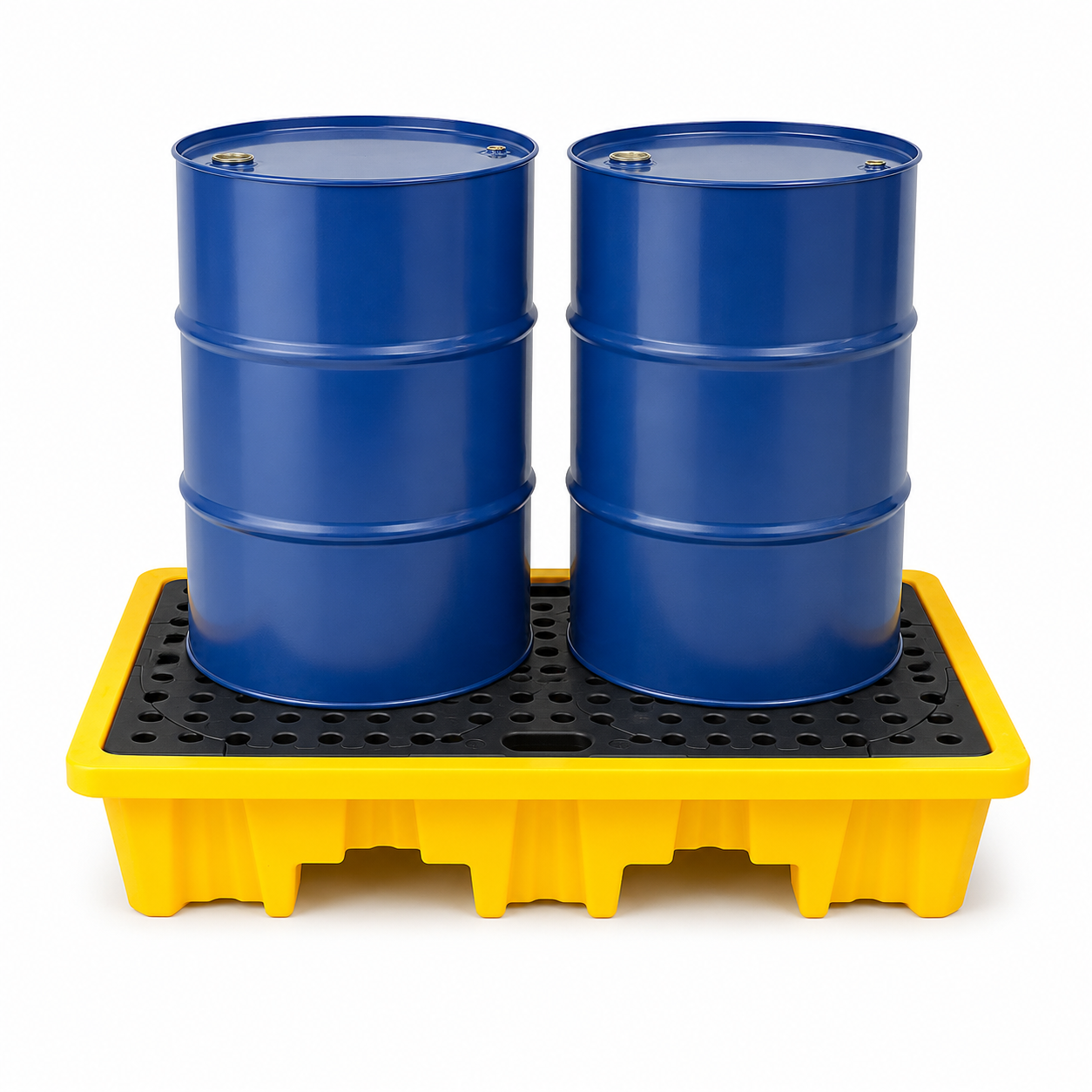

2 drum spill pallet product image

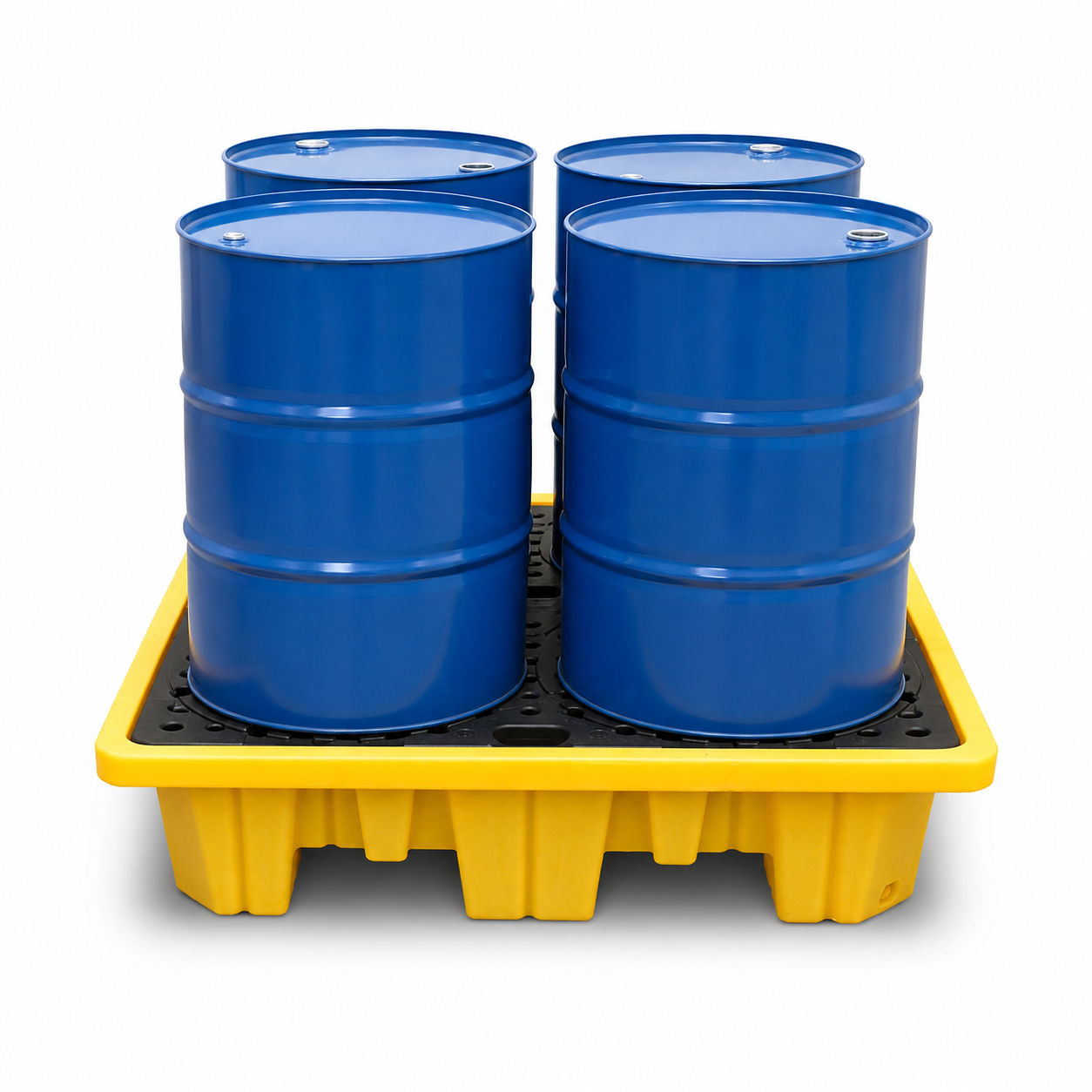

4 drum spill pallet product image

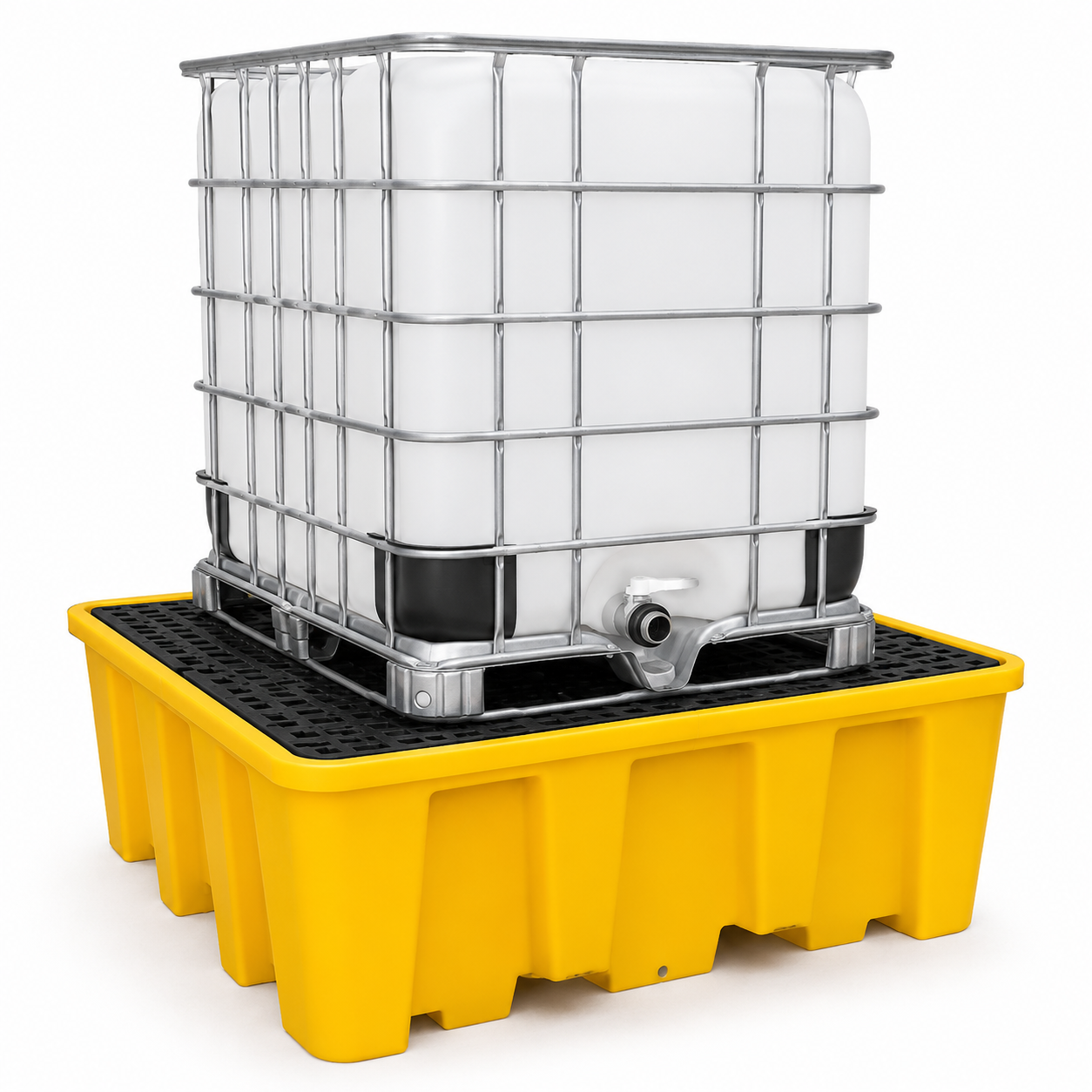

IBC spill pallet product image

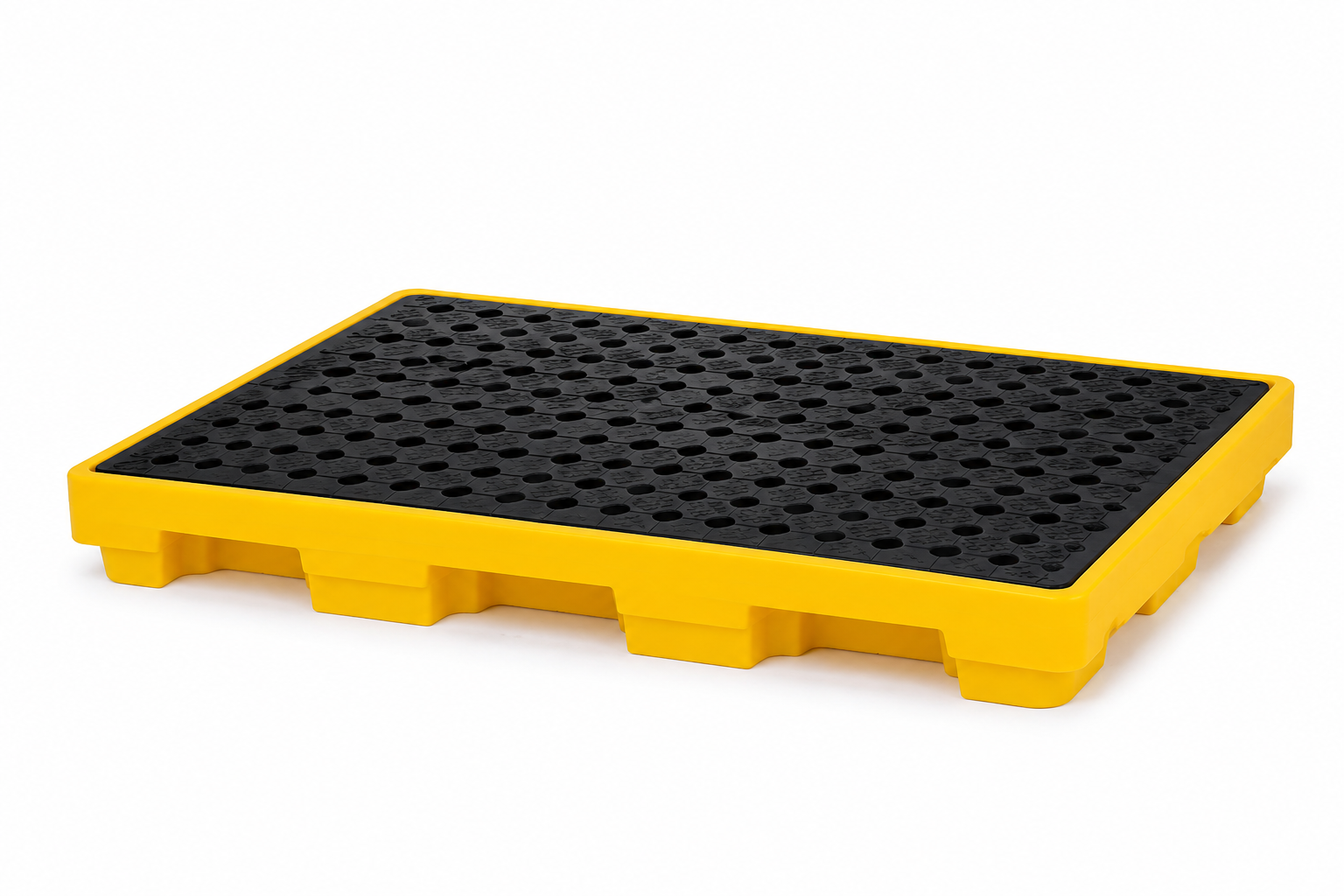

Low profile spill deck product image

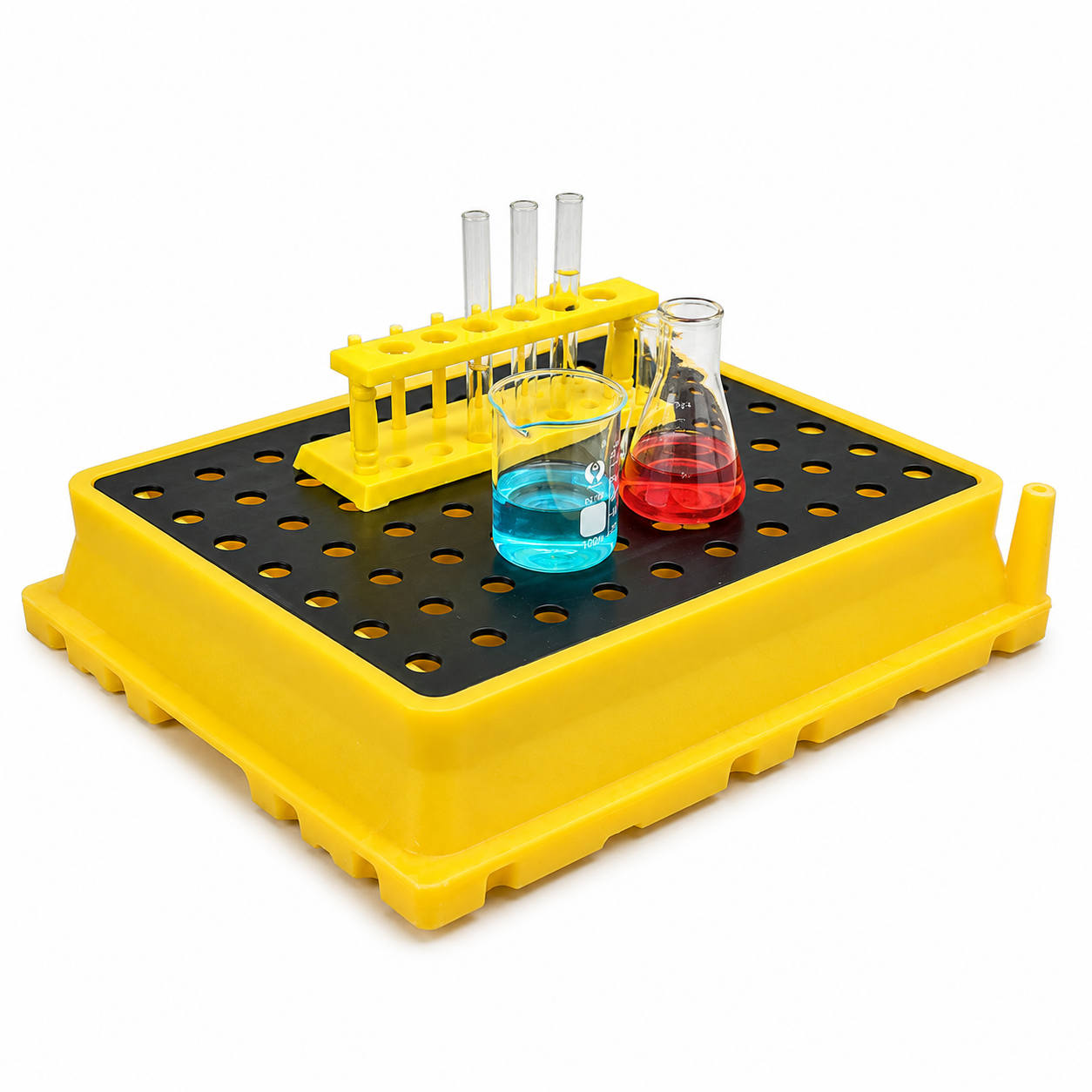

Laboratory spill deck product image
Need a specific model?
Share drum count, dimensions, sump capacity, quantity and destination so we can prepare sourcing options.
